RC Winches  From a modelsailor To a modelsailor

More than 30 years of model sailing are behind me.
As technical engineer I was working in the Aircraft Industries at a research laboratory. My job was investigation into the properties of high-tech materials. Of course I had to know if these materials were applicable for my Marblehead. I was one of the first using carbon fibres for fin and rudder. I produced a lot of home-made carbon fibre (shroud less) masts.
I build my own transmitter, receiver and developed a self made winch.
Nowadays all these items are easy to buy.

But just when Graupner stopped the production of there famous Regatta winch, I needed one. That was the reason I tried to modify a servo into a winch. The result was so successfully that I decided to take this high voltage winch in production.

Today I sell two fast and lightweight high quality winches. They are applicable for IOM, M, Ten or A class boats. Several types of drums are available and a cable switch with voltage regulator. For RG65 there is a small winch (32g) available.
                         SAILWINCHES
Specification

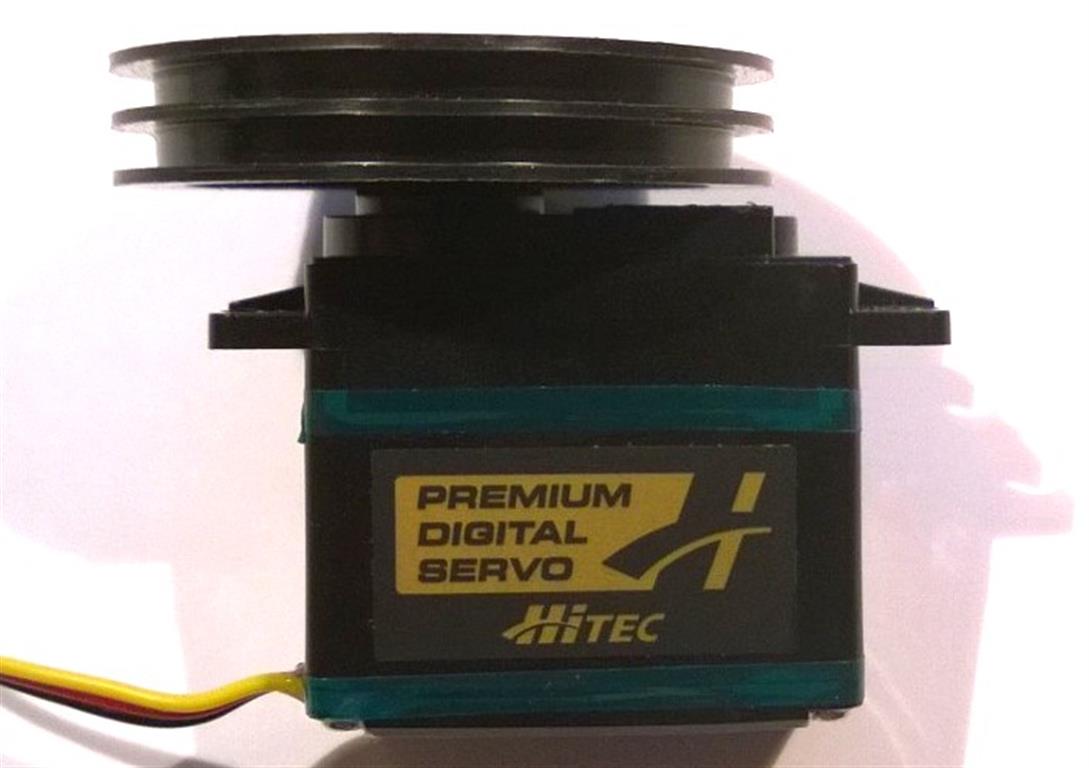

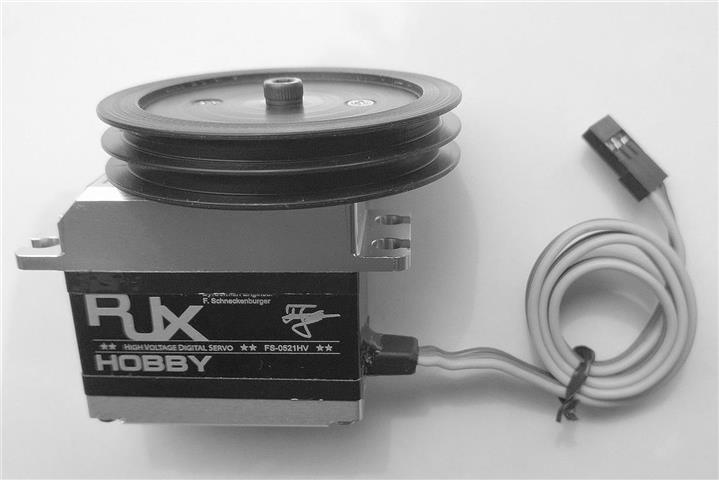

Sail Winch 8.4V
Digital		 Sail Winch 8.4V

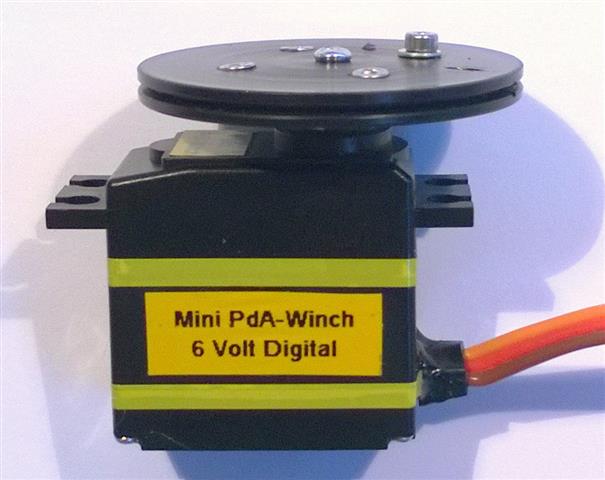

Digital		 Mini Winch 6V for RG65 or equivalent
Digital
Supplier
Hitec RJX -
Code Nr 048 030 042
Weight g 58 70 32
Dim. mm 40x20x38 40x20x37 32x17x34
Torque Kgcm 16 22 4.8
Motor type BLS CLS -
Voltage
6-8.4V 6-8.4V 4.8-6V
Speed turns/sec. 2   (0.48s/turn) 3  (0.30s/turn)
 3  (0.32s/turn)
Gear
Metal Metal Metal
Bearing
BB BB BB
Turns max, adjustable by transmitter
 6 3 2.6
Price(excl drum) eu 130 160 60





-
Drum
Price
mm
eu
42
10
42
10
36
5

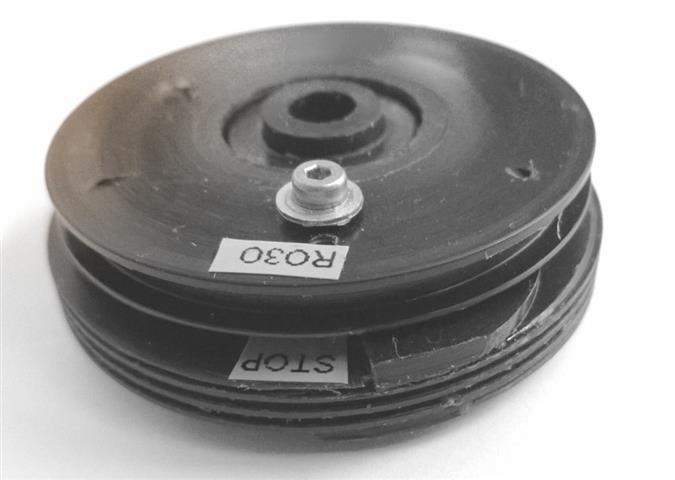

Spiraldrum
Self tensioning
47 --> 10mm
NEW!


25 eu
